Honeycomb Sheet

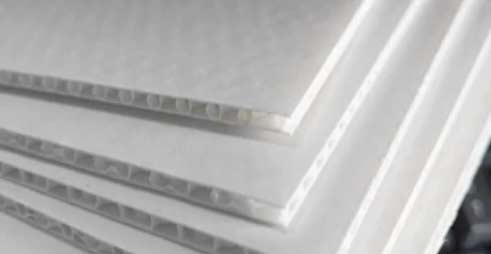

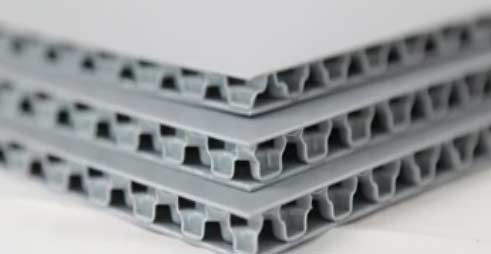

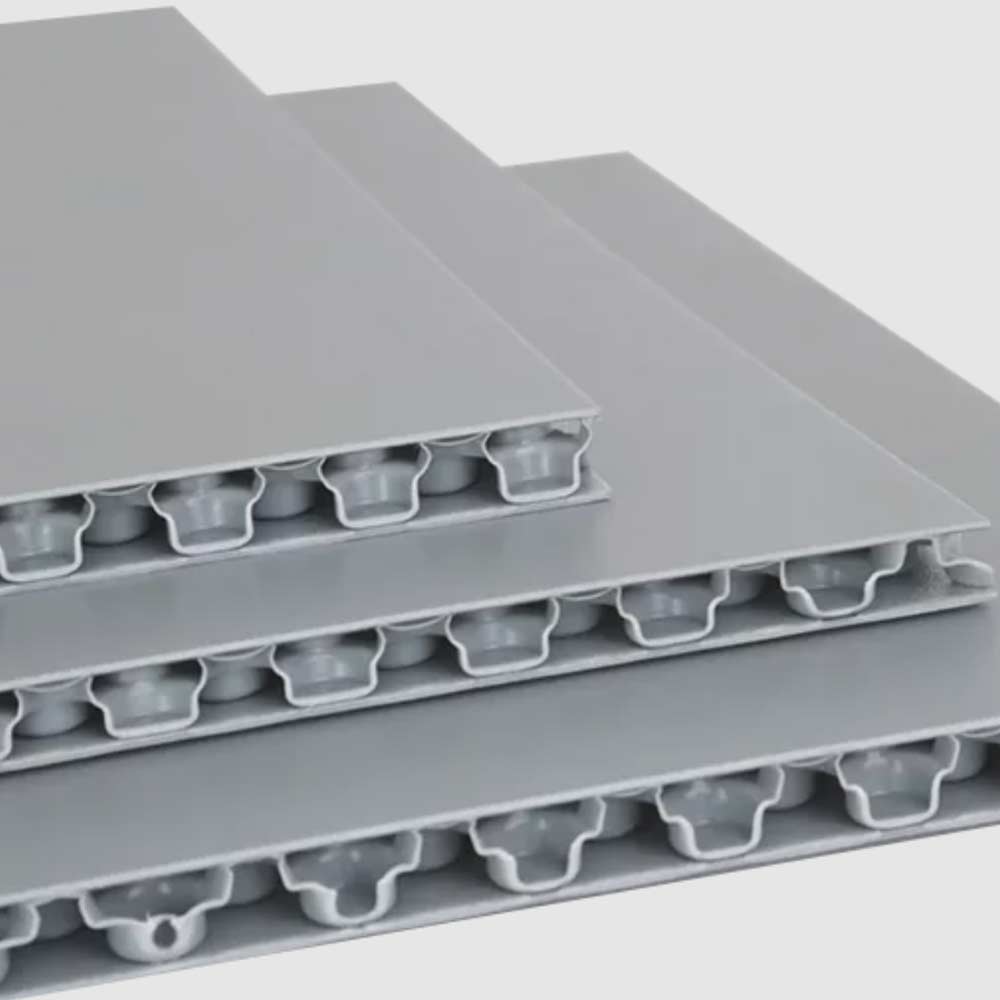

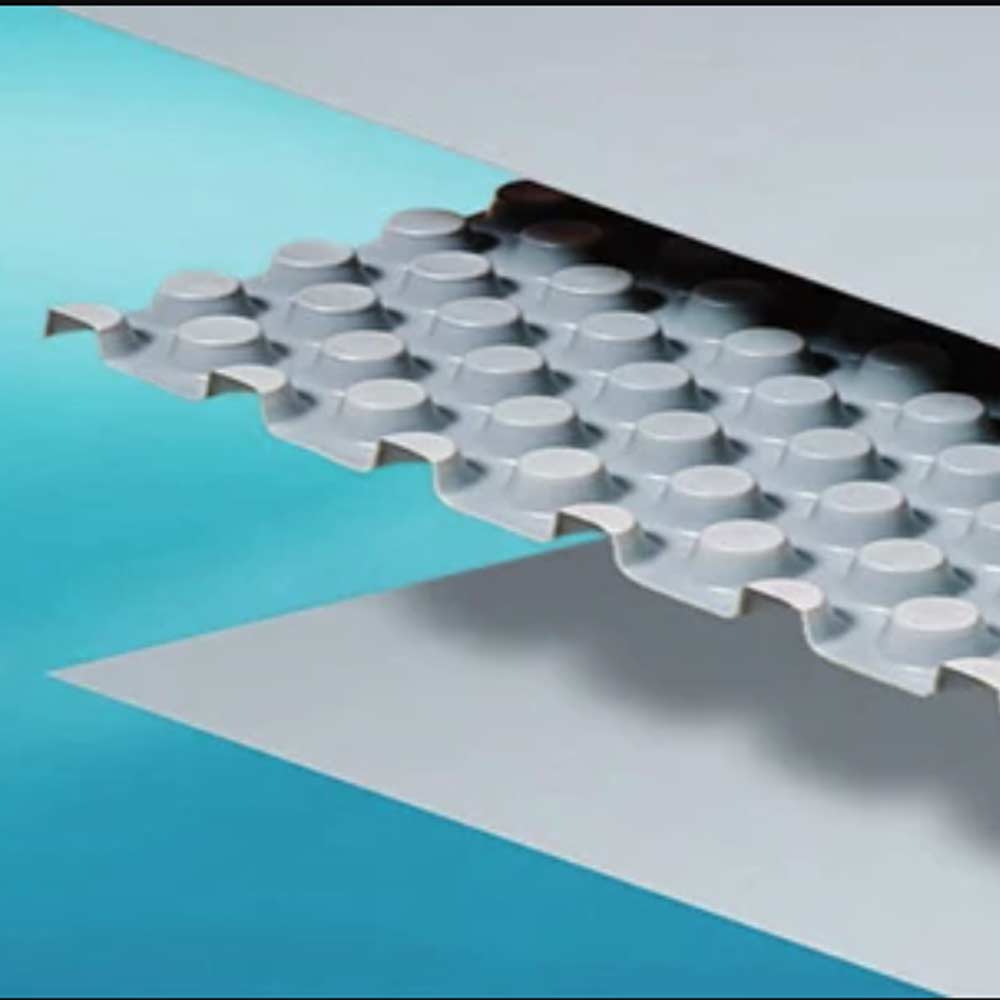

Polyreflex polypropylene (PP) honeycomb panel (also called plastic honeycomb sheet,PP bubble panels) has a unique sandwich structure, in which the honeycomb structure is used as the core layer, and the single or double surface has a bubble finish or a flat finish.

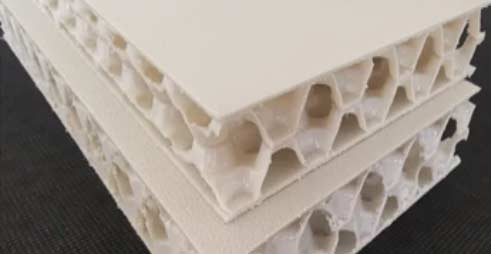

PP honeycomb board is made of polypropylene, with a stable honeycomb core layer structure, the polypropylene honeycomb panel has the advantages of lightweight, chemical resistance, impact resistance, high load capacity, easy processing and recyclability.Compared with paper honeycomb panels,plastic honeycomb panels would be waterproof and not easy to damp.

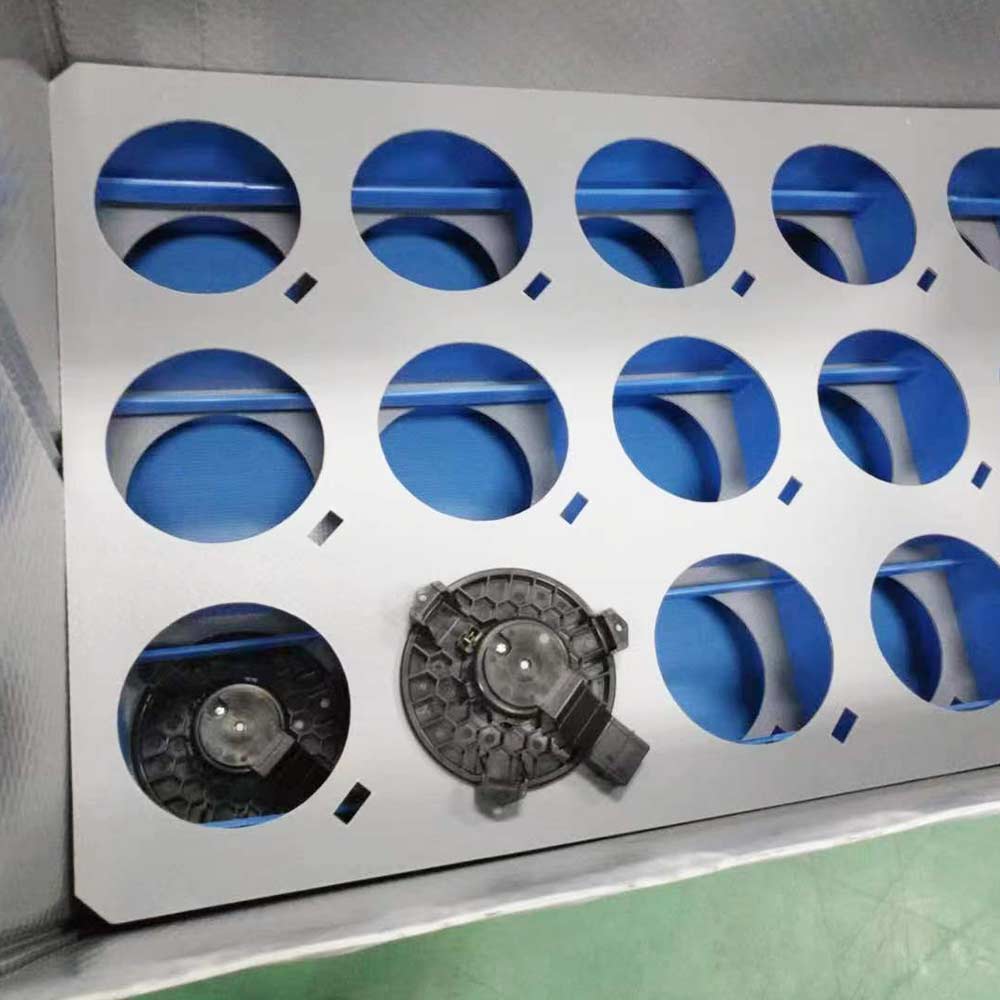

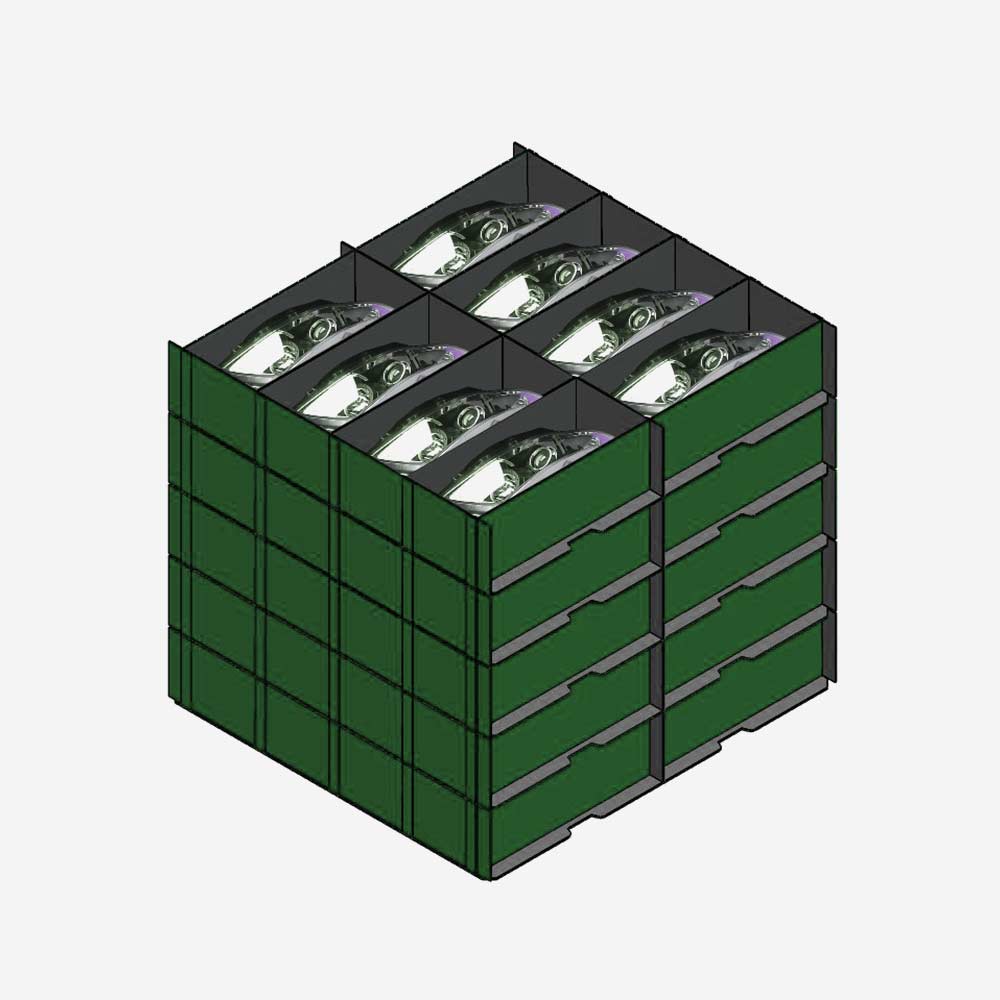

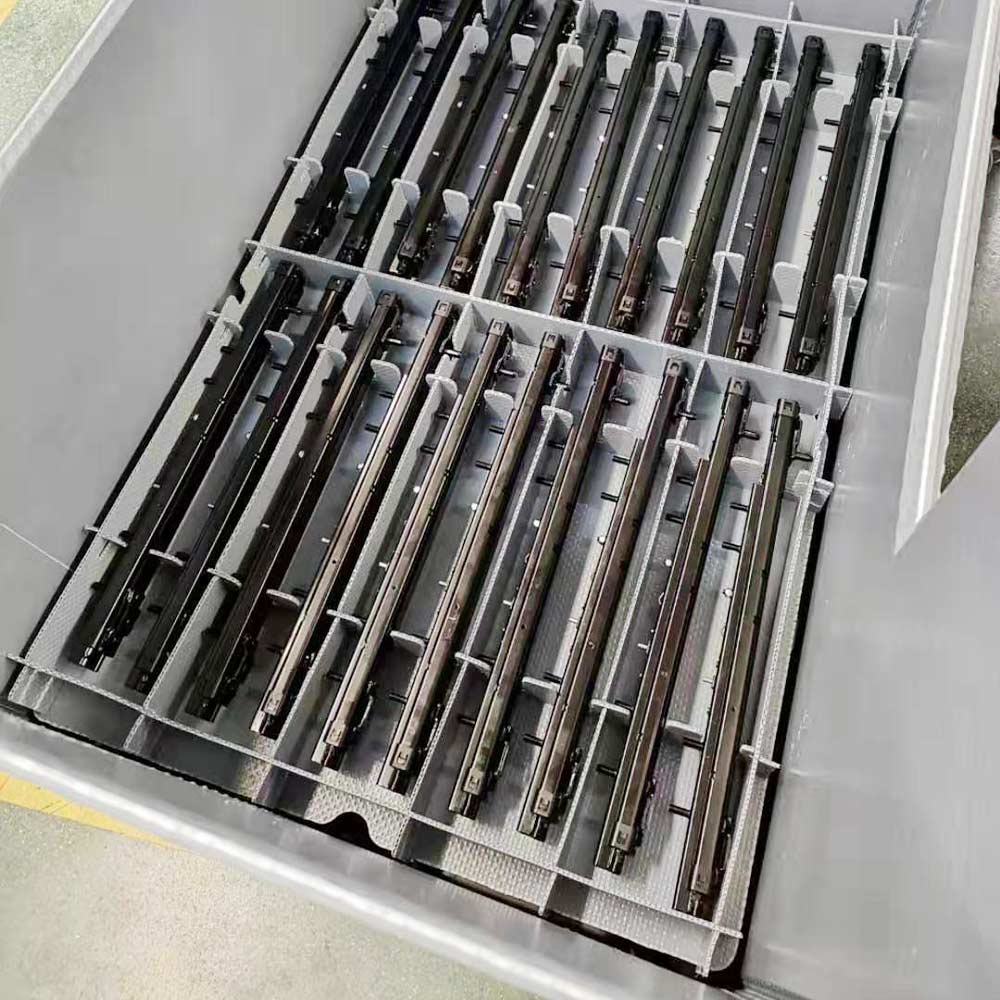

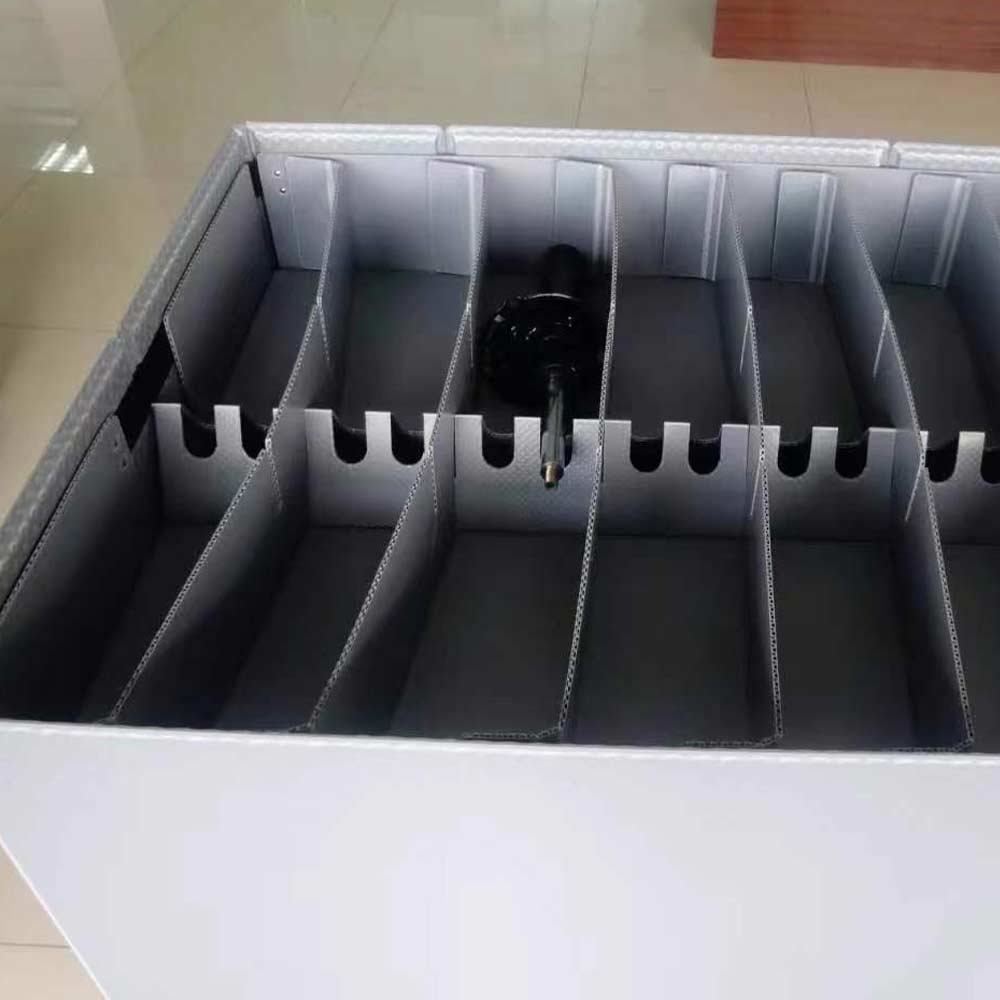

Lightweight PP honeycomb sheet is widely used in the automobile industry, logistics and transportation, warehouse and turnover management, packaging, advertising and display, construction, etc.

Lightweight

Polypropylene honeycomb boards has a honeycomb core structure. Due to the low density of the thermoplastic structure, it is lighter in weight and more convenient to use.

Impact Resistance

With a stable honeycomb core structure and two layers of solid sheets, the PP honeycomb panels have superior impact resistance and high load capacity compared to other lightweight panels.

Recycling

Polyreflex honeycomb panels are 100% recyclable. It is made of polypropylene raw materials, our products have passed RoHS, REACH and heavy metal testing, and are food-grade environmentally friendly materials.

Stability

Polypropylene honeycomb panel has the characteristics of corrosion resistance, weather resistance and high temperature resistance, can be used in humid environment.

Easy Processing

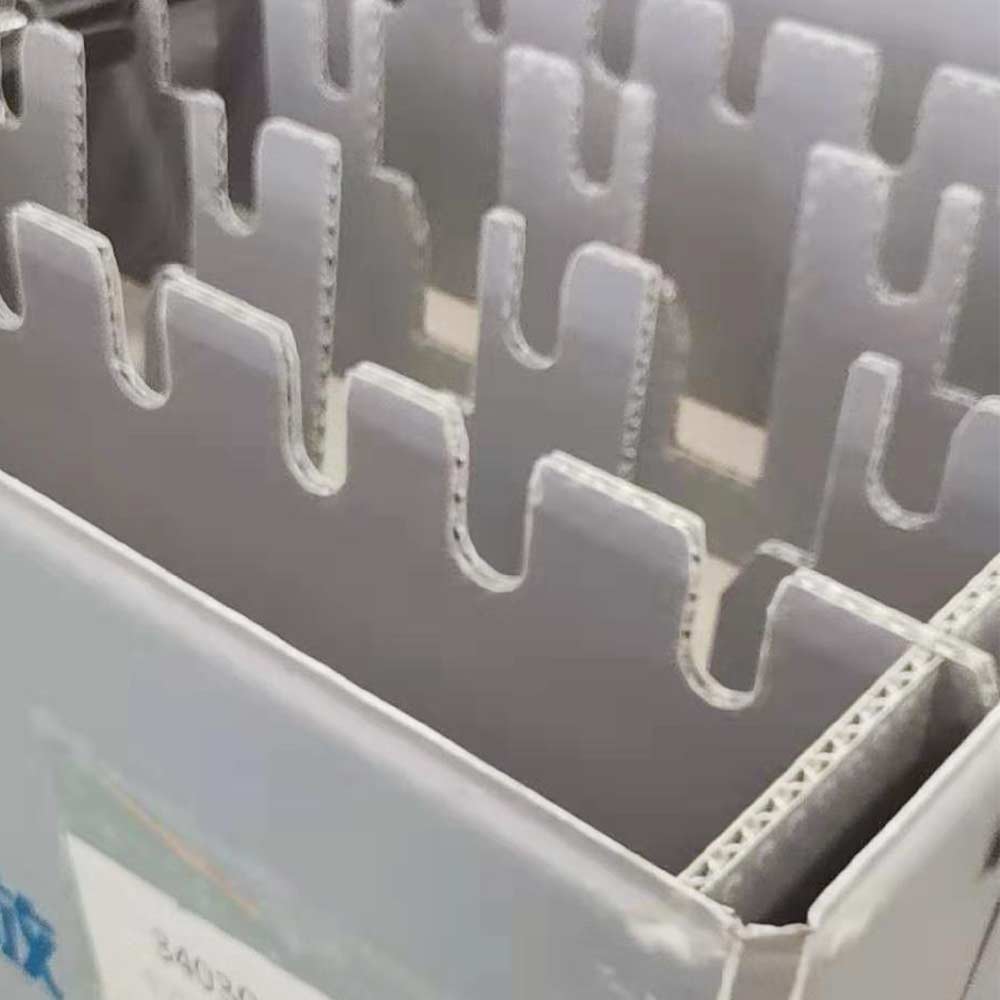

Polypropylene honeycomb panels can be easily processed, such as sealing, welding, bending, die-cutting, CNC engraving, and printing.

Application

Product Type ThinThickUltra-thick
Thickness1mm - 6mm 6mm - 12mm 15mm - 29mm
Widthmax. 1900m max. 1950mm
max. 1400mm
standard 550mm, 1100mm
Density250 - 2500 g/m2 2000 - 4500 g/m2 3200 - 4700 g/m2
Standard Color grey, white grey beige, grey
Surface Type matt + matt matt + matt rough + texture
matt + rough matt + rough rough + texture
texturetexturerough + texture
Composite Material Options
anti-slip thermoplastic anti-slip thermoplastic non-woven fabric
non-woven fabric non-woven fabric non-woven fabric
other composite other composite non-woven fabric

FAQ

We suggest to check below details and contact our sales team to get prompt and processional solution.

1. Pallet application
for racks-generally choose 3 runners pallets,full perimeter bottom type pallets and double faced pallets;
for transportation-generally choose 3 runners pallets,full perimeter bottom type pallets and 9 feet pallets;
For one-way delivery-generally choose 9 feet pallets.

2.Pallet size

3.Pallet load capacity
dynamic load, static load and racking load.

Yes, we can customized for any color.

Generally 15-20days against deposit.

  • Customized Logo printing;
  • Customized color;
  • Free det+dem at destination port;
  • Three years quality warranty
