1200x1000x975
Please complete the following for access to the free download.
Please complete the following for access to the free download.
Please complete the following for access to the free download.
Please complete the following for access to the free download.

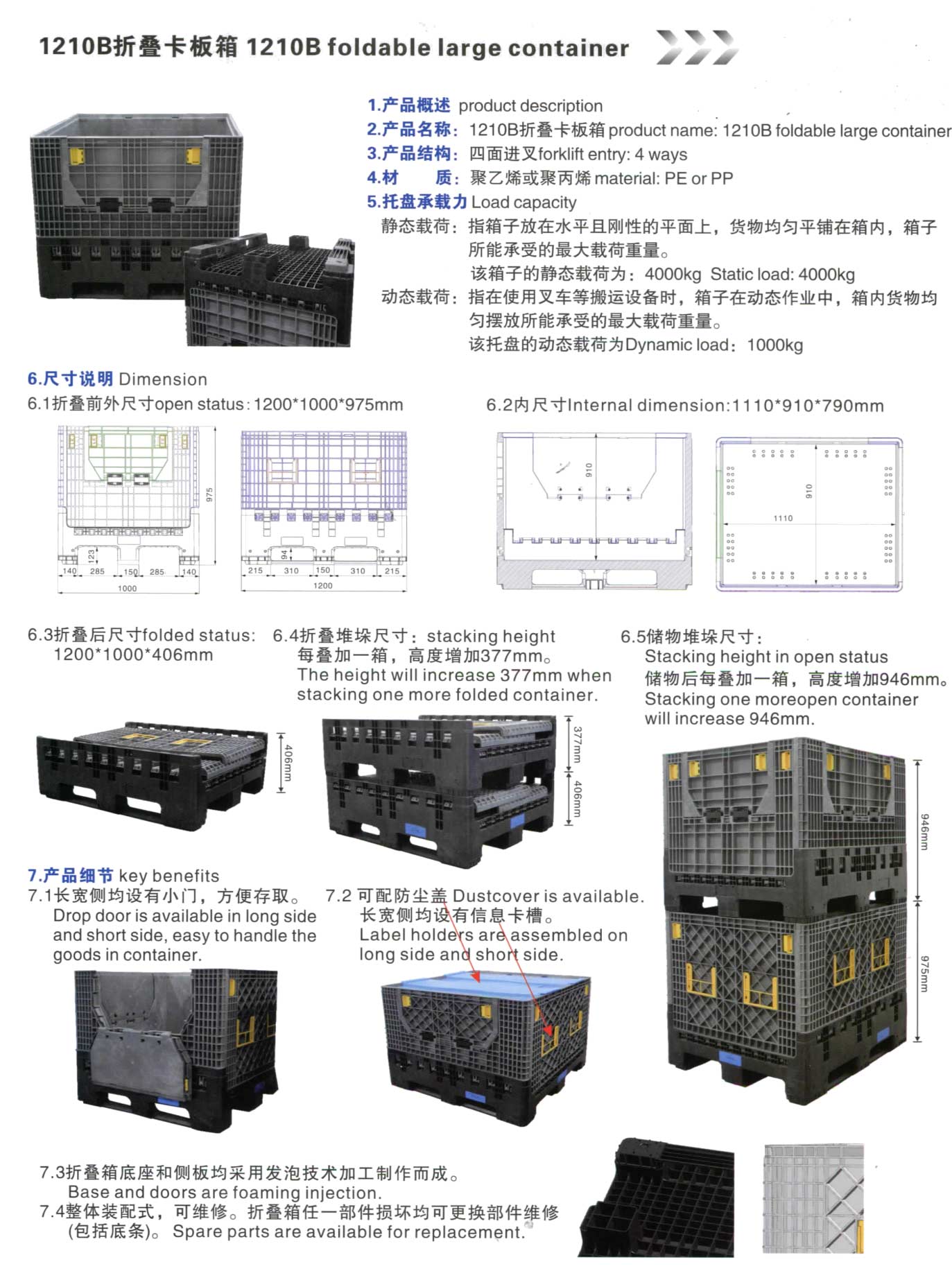

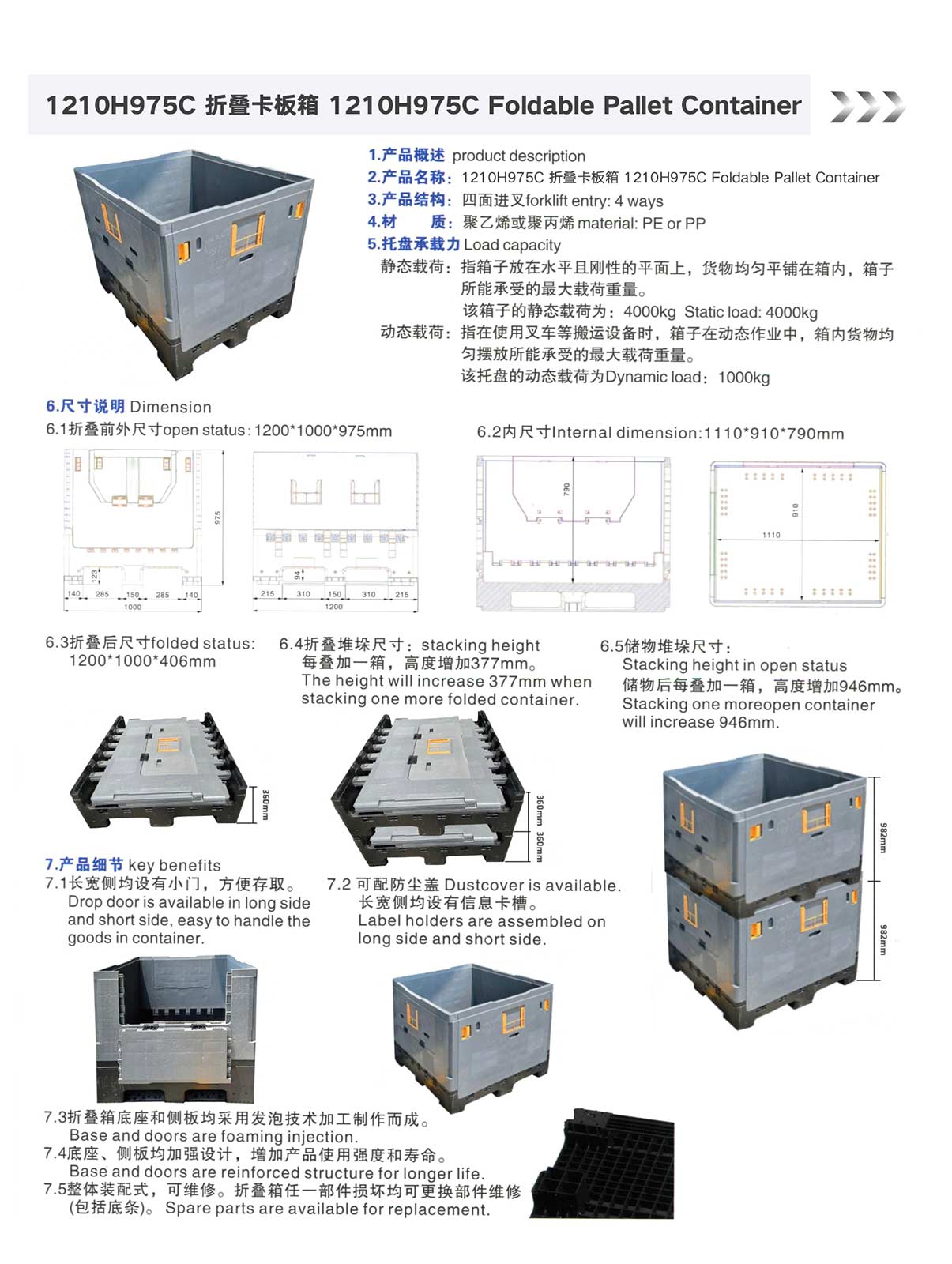

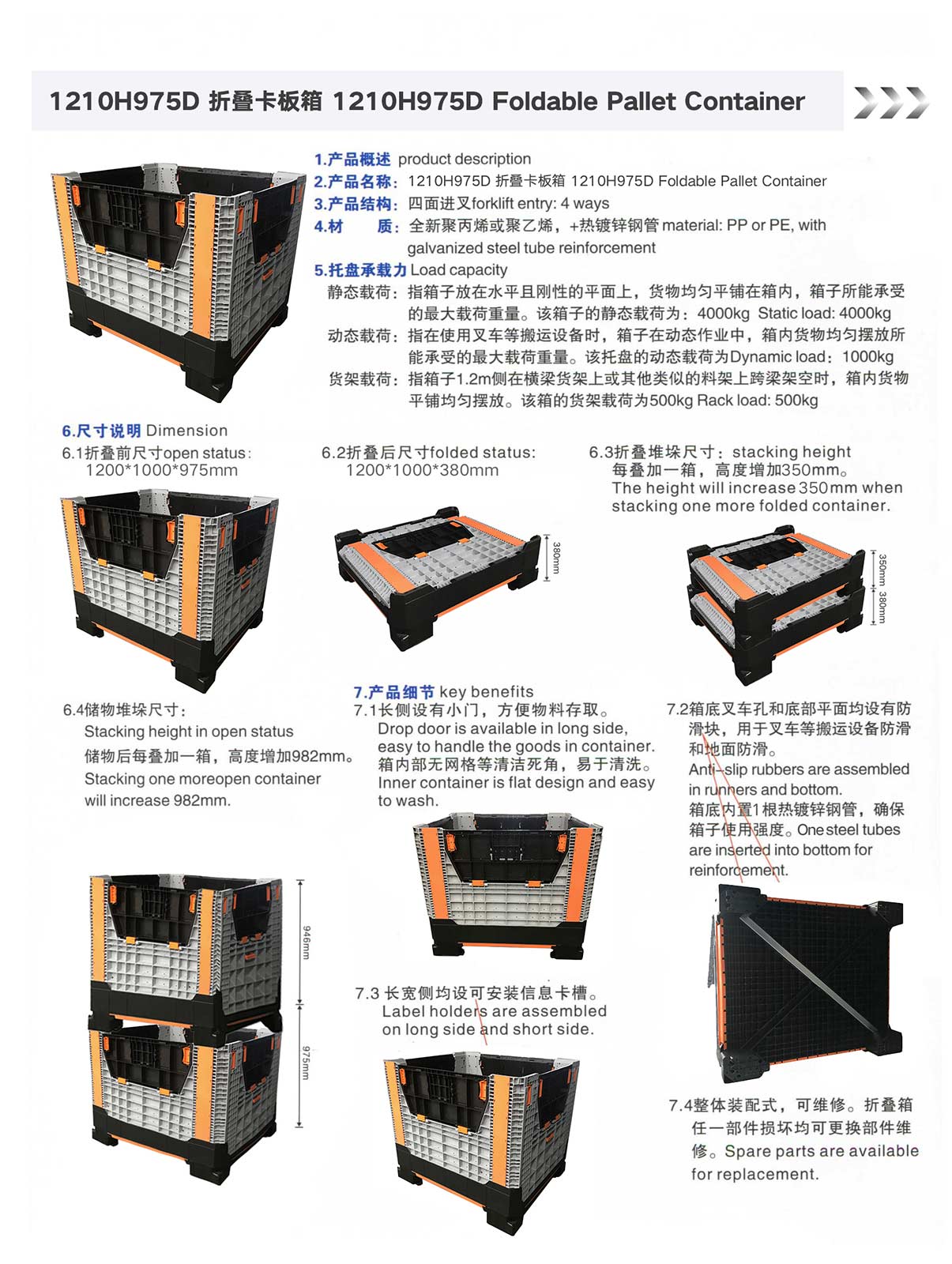

| Item No. | 1210H975A | 1210H975B | 1210H975C | 1210H975D |
|---|---|---|---|---|
| Material： | HDPE/PP | HDPE/PP | HDPE/PP | HDPE/PP |
| External DIM(mm) | 1200*1000*975 | 1200*1000*975 | 1200*1000*975 | 1200*1000*975 |
| Internal DIM(mm) | 1110*910*790 | 1110*910*790 | 1110*910*790 | 1115*915*825 |

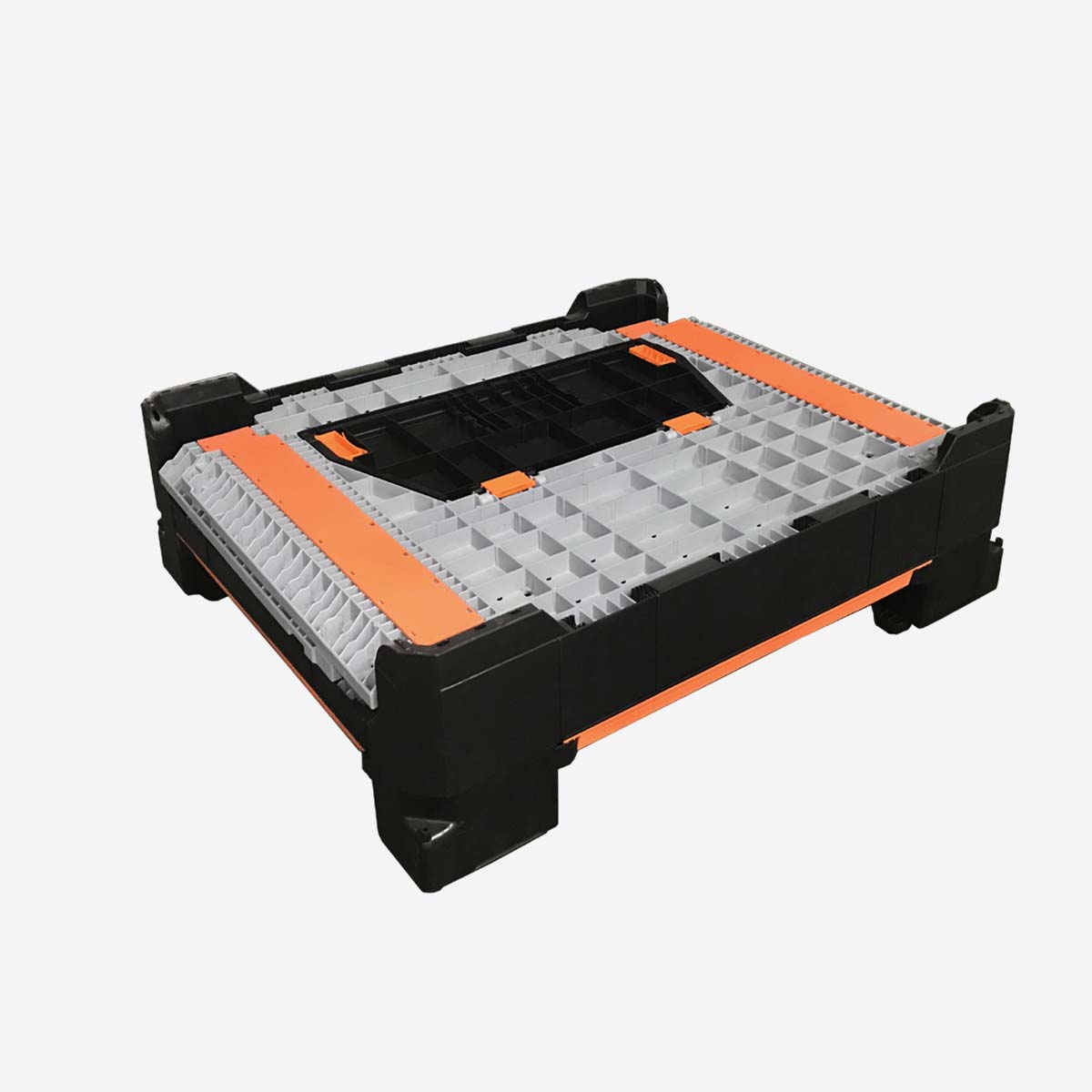

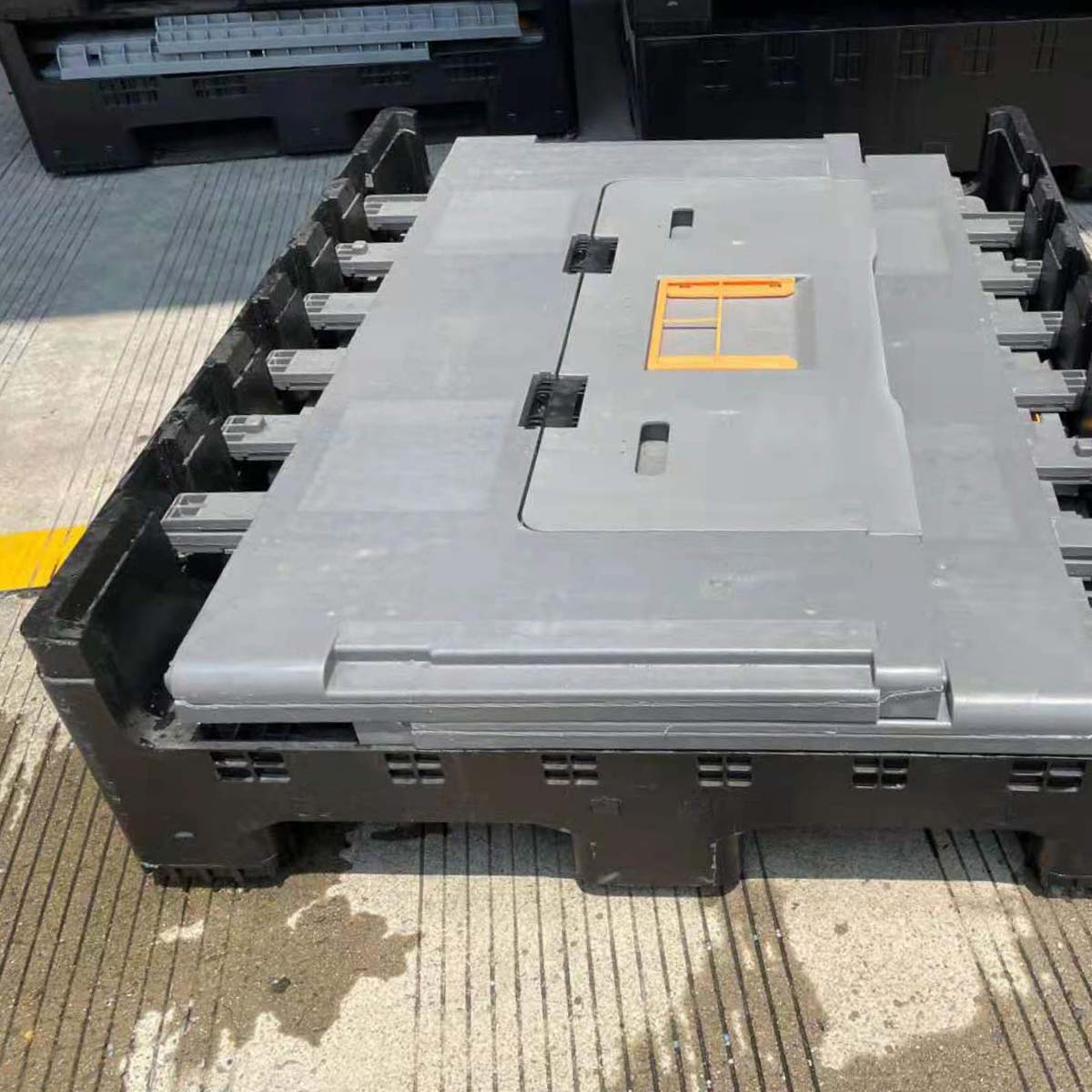

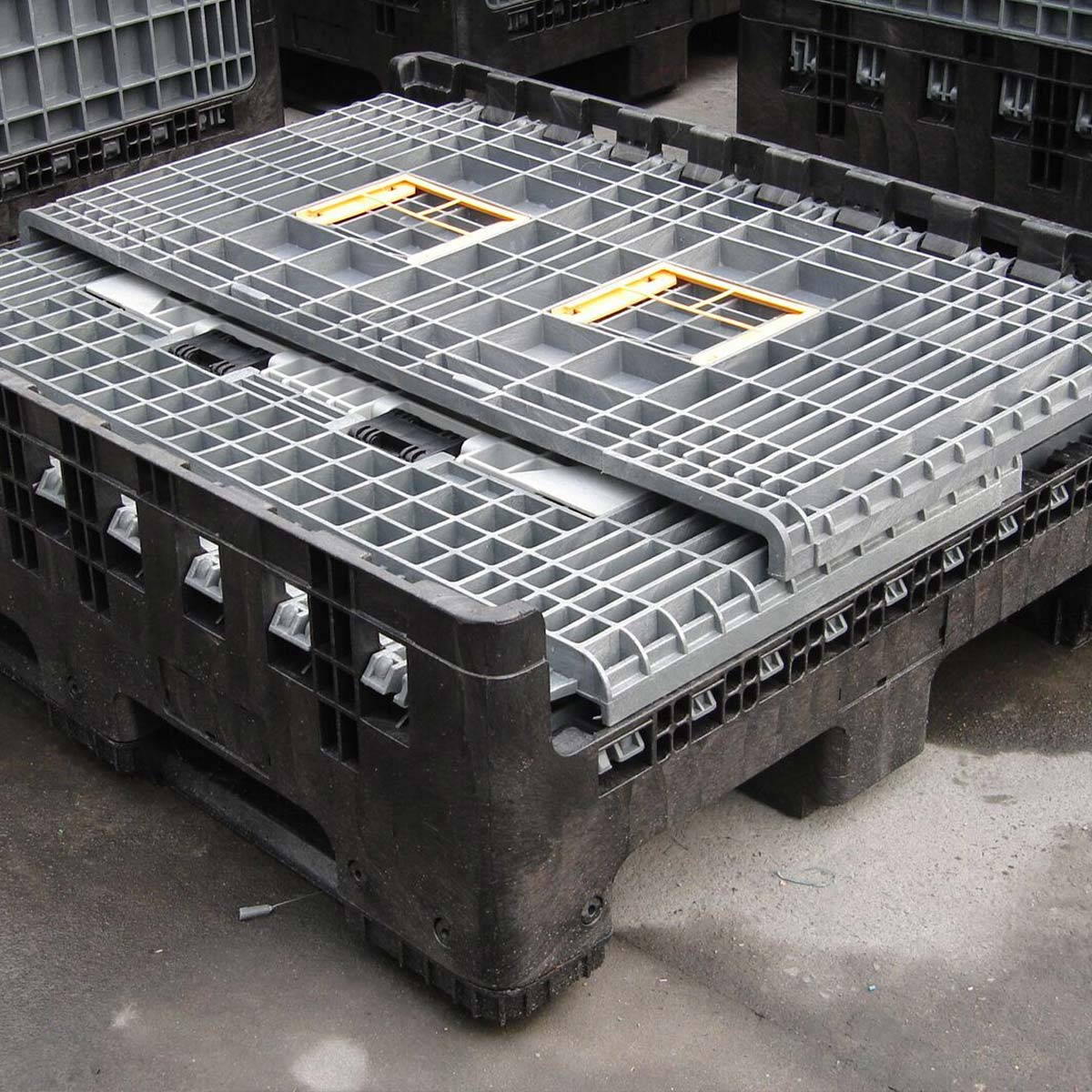

| Folded DIM(mm) | 1210*1000*406 | 1210*1000*406 | 1210*1000*406 | 1210*1000*380 |
| Unit weight(Kg): | 70 | 60 | 76 | 56.5 |
| Static Load(T) | 4 | 4 | 4 | 4 |
| Dynamic Load(T) | 1 | 1 | 1 | 1 |
| Temperature | "-20-55°C | "-20-55°C | "-20-55°C | "-20-55°C |
| Steel reinforcement | No | No | No | Yes |
| Locks | Yes | Yes | Yes | Yes |

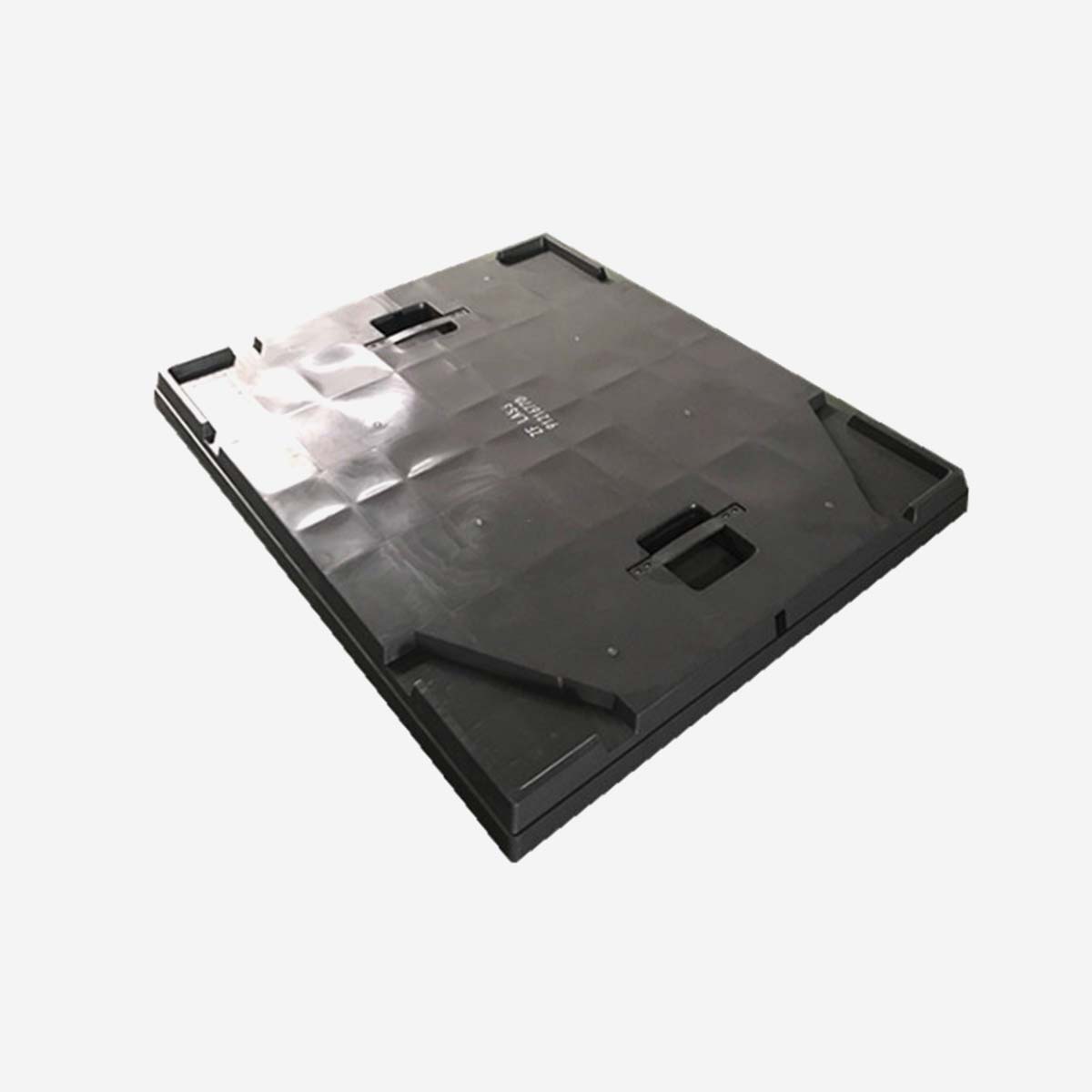

| Lids | Optional | Optional | Optional | Optional |

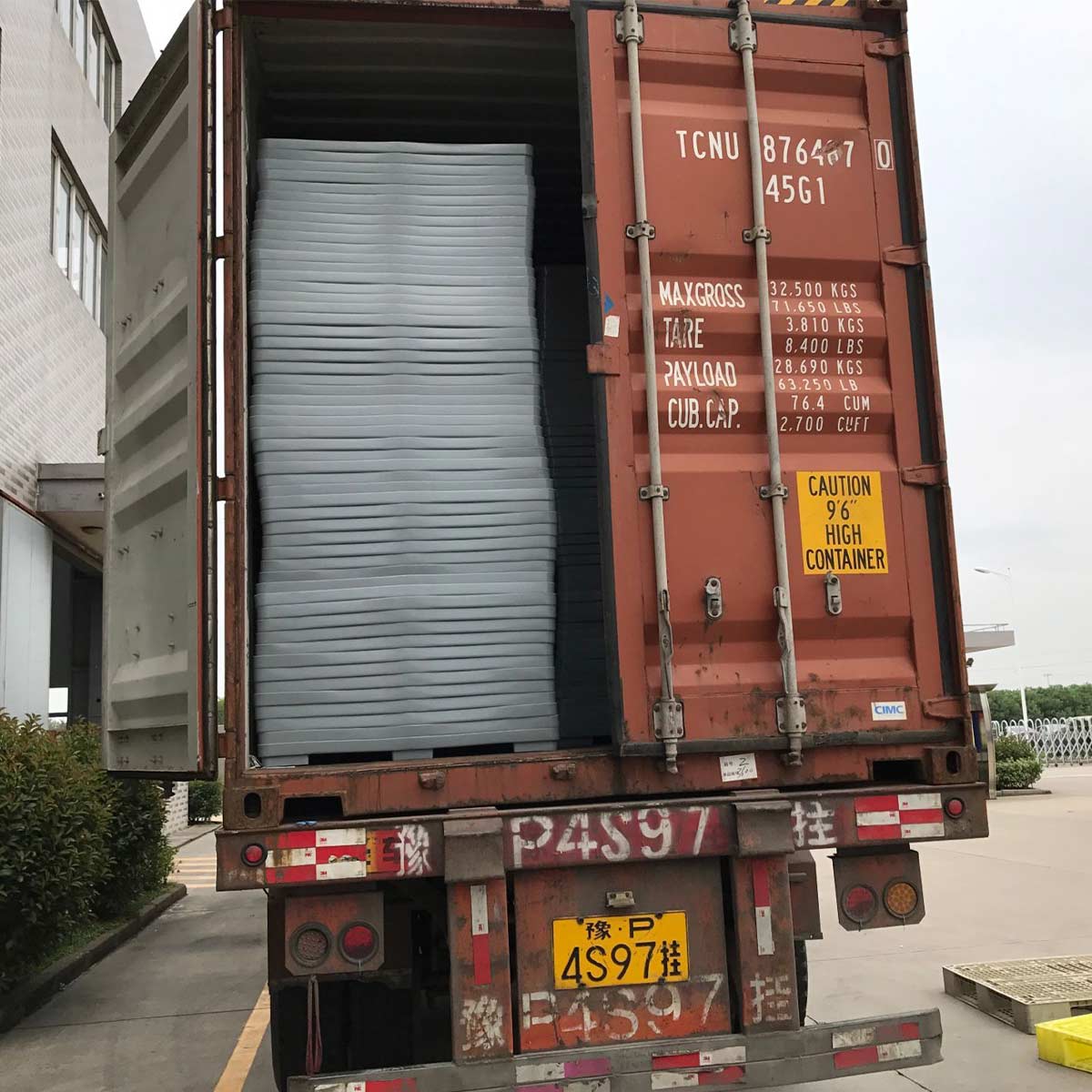

| Packing Quantity | 60pcs/ 20G 150 pcs/40'HQ | 60pcs/ 20G 150 pcs/40'HQ | 56pcs/ 20G 146 pcs/40'HQ | 56pcs/ 20G 146 pcs/40'HQ |
We suggest to check below details and contact our sales team to get prompt and processional solution.
1. Pallet application
for racks-generally choose 3 runners pallets,full perimeter bottom type pallets and double faced pallets;
for transportation-generally choose 3 runners pallets,full perimeter bottom type pallets and 9 feet pallets;
For one-way delivery-generally choose 9 feet pallets.
2.Pallet size
3.Pallet load capacity
dynamic load, static load and racking load.
Yes, we can customized for any color.
Generally 15-20days against deposit.
