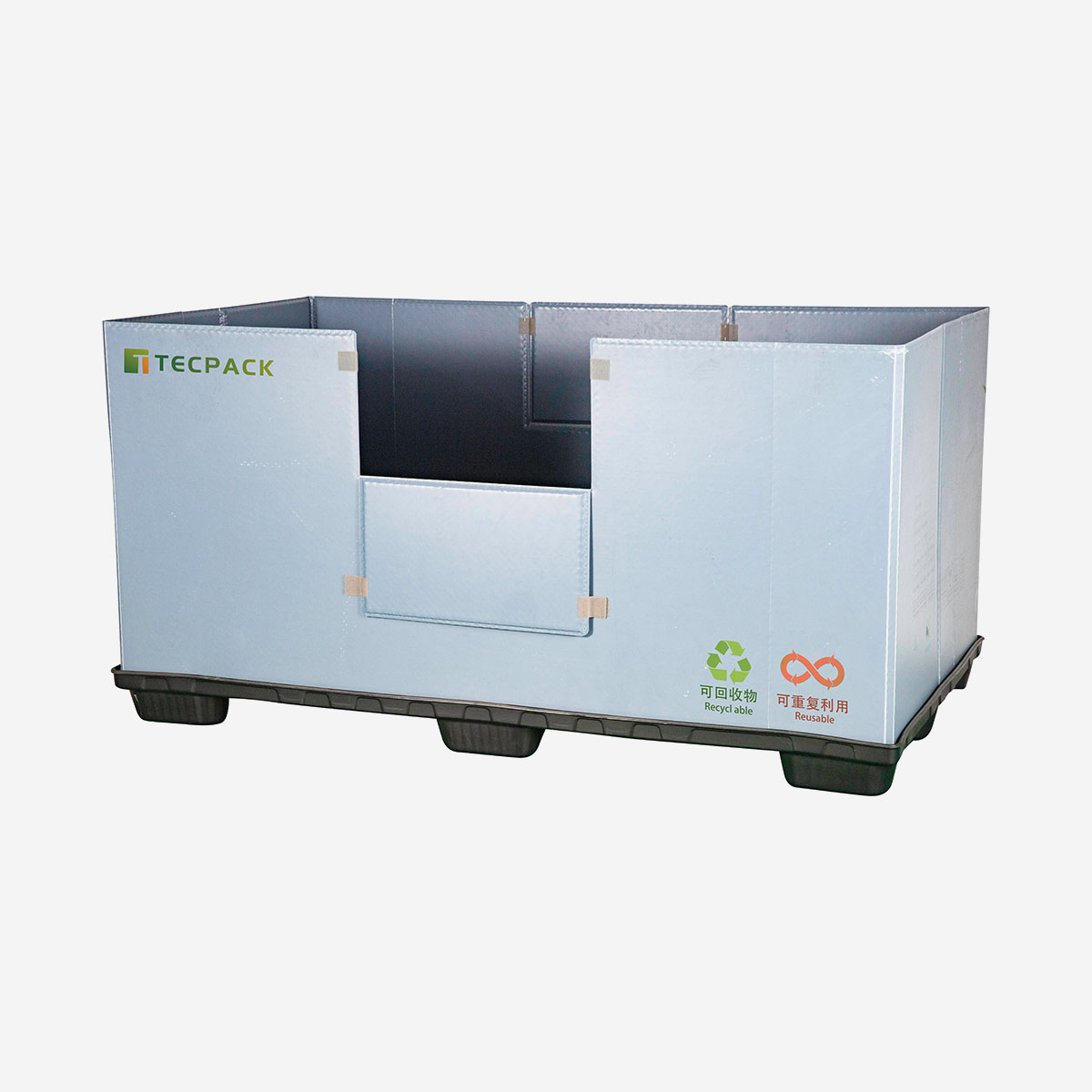

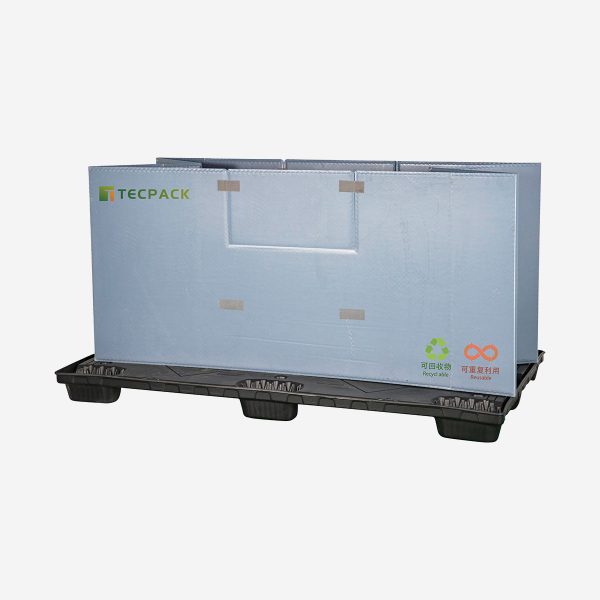

| Item No. | HD-CM183113 | |
|---|---|---|
| Material: | HDPE(lid & pallet)+PP(honeycomb sheets) | |
| External DIM(mm): | 1830*1130*500/ 760/ 860/ 1000/ 1050/... Any customized height height | |
| Internal DIM(mm): | 1780*1065*300/ 560/ 660/ 800/ 850/... External-200 | |
| sleeve height(mm): | Total height-120 | |

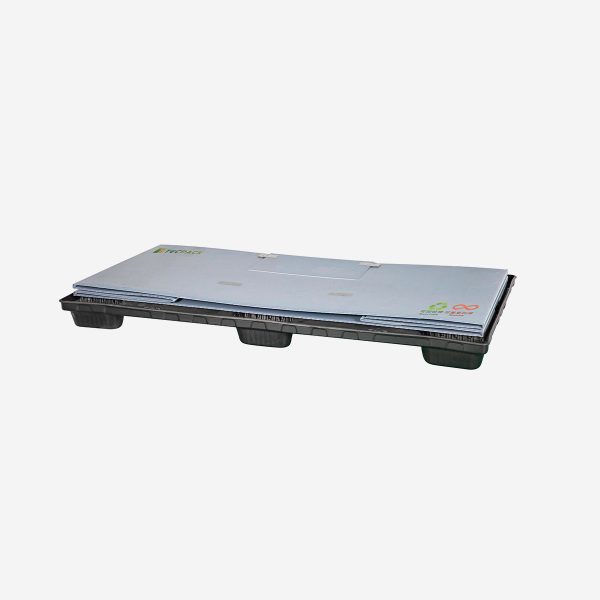

| Folded height(mm): | 1830*1130*1000 | |
| pallet & lid weight (kg): | 33kgs(pallet:19kg + lid:14kg) | |
| Locks: | Optional , 4 locks at lid,4pcs at bottom pallet | |
| Honeycomb sleeve: | 11.3mm 3.5kg/m2 | 11.3mm 4.0kg/m2 |
| Static load(kg): | 1+3 (1200kg),height<900mm 1+2 (1200kg),height>900mm | 1+3 (2000kg),height<900mm 1+2 (2000kg),height>900mm |
| Dynamic load(kg): | 1+2 (900kg),height<900mm 1+1 (900kg),height>900mm | 1+2 (1500kg),height<900mm 1+1 (1500kg),height>900mm |
| Single box load(kg): | 300Kg | 500Kg |
| Folding times: | ≥30,000 times | |
| Temperature: | -20°c- 50°c | |
| Service life: | More than 3 years | |
| Folding type: | M-folding,U-folding | |
| Steel Reinforcement: | No | |
| Packing quantily: | 86 sets/20G | 196 sets/40H |
We suggest to check below details and contact our sales team to get prompt and processional solution.
1. Pallet application
for racks-generally choose 3 runners pallets,full perimeter bottom type pallets and double faced pallets;
for transportation-generally choose 3 runners pallets,full perimeter bottom type pallets and 9 feet pallets;
For one-way delivery-generally choose 9 feet pallets.
2.Pallet size
3.Pallet load capacity
dynamic load, static load and racking load.
Yes, we can customized for any color.
Generally 15-20days against deposit.
