Help BOSCH To Pack Brake Booster Well

TECPACK team carried out the design and inner package material selection of the Brake Booster project for Bosch.

The Bosch Group is a leading global supplier of technology and services. It employs roughly 395,000 associates worldwide (as of December 31, 2020). The company generated sales of 71.5 billion euros in 2020. Its operations are divided into four business sectors: Mobility Solutions, Industrial Technology, Consumer Goods, and Energy and Building Technology.

As a leading IoT provider, Bosch offers innovative solutions for smart homes, Industry 4.0, and connected mobility. Bosch is pursuing a vision of mobility that is sustainable, safe, and exciting. It uses its expertise in sensor technology, software, and services, as well as its own IoT cloud, to offer its customers connected, cross-domain solutions from a single source.

TECPACK’s reusable package system products meet the needs of the customer

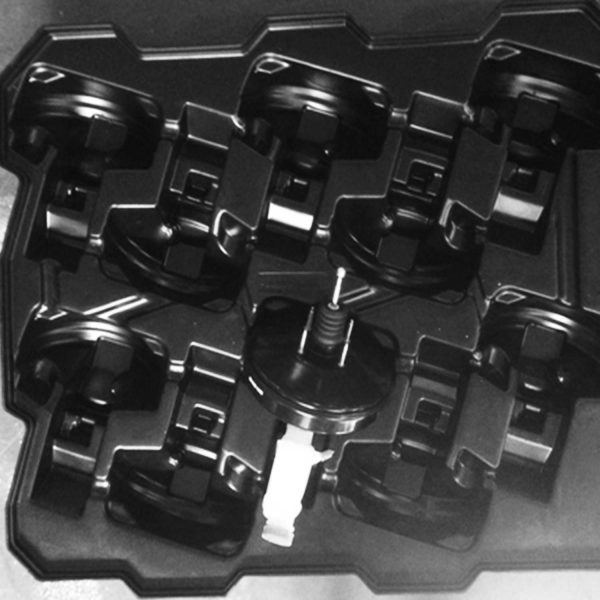

TECPACK design department choose the HDPE blister tray as the bearer of the Brake Booster, which is strong and can be designed in the same shape as the product, with intense to keep boosters are stable in their location during transportation.

Considering transportation cost, we design 10 layers per sleeve boxes, so they can load 30 pieces in every box, and the outside plastic sleeve boxes are made of PP, which are strong, waterproof, and dustproof.

Standard sizes for outside pallet boxes are 1200x1000x1060mm, they can adopt with any transportation method.

In the end, we selected 4 different types of package products, injection plastic pallets, honeycomb sleeves, blister lids, and blister inner bearer trays.

TECPACK’s reusable package system products meet the needs of the customer.

The parameters of the products used in this solution

Product name

Plastic Sleeve Box

Qty/box3*10=30
External dim.
1200*1000*1060mmVolume reduced

3:1
Internal Dim

1135*935*880mmStacking layers

1+1
Folded Height

1200*1000*210mmPallet type

Injection 3 runners pallet

Stacking

1+1Material of inner pacakge

customized HDPE blister tray

Single box load

350kg
Unit weight

40kg
